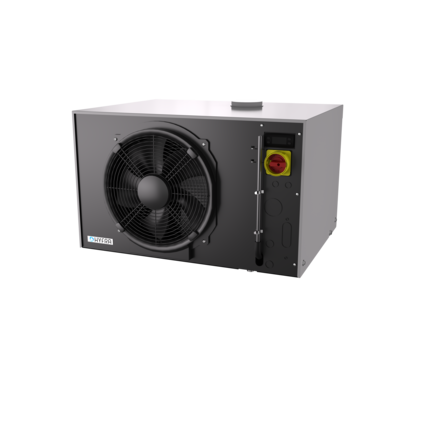

Mini Chiller

HYFRA eChilly Propane

Compact, highly efficient chiller using the natural refrigerant propane (R290) for industrial applications.

  • Power range: 1–6 kW
  • Medium: Water or water/glycol mixture
  • Typical applications: Welding equipment, milling technology, drilling stations, tool change systems and laboratory technology
  • Future-proof in the long term with natural refrigerant: Available as a propane version (R290) to meet EU requirements with an extremely low GWP (~3) – compliant with legislation in the long term.
  • High energy efficiency: Excellent thermodynamic properties of propane → maximum efficiency in continuous operation.

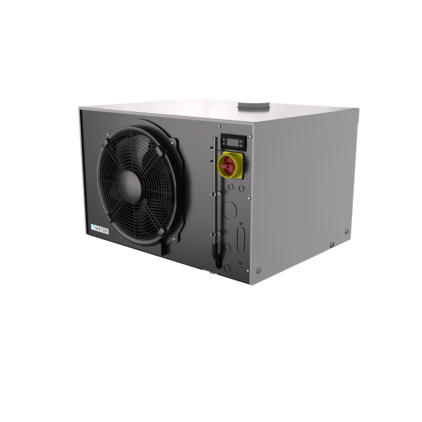

Minichiller

HYFRA eChilly R513A

Compact, highly efficient chiller with R513A refrigerant – ideal for export outside the EU.

  • Power range: 1–6 kW
  • Medium: Water or water/glycol mixture
  • Typical applications: Welding equipment, milling technology, drilling stations, tool change systems and laboratory equipment
  • Logistics & safety: Non-flammable refrigerant (A1). Not classified as dangerous goods. Can be transported by air freight without any issues.
  • Safety-oriented installation: R513A is the appropriate choice for industrial applications with heightened safety requirements at the installation site.
  • Regulatory compliance (USA & Canada) - Complies with relevant environmental regulations and limit values.
  • Compact design - smaller footprint with 0.5 m2 - one housing for all sizes
  • Integrated additional options such as level indicator, easy tank draining and variable placement of connection options.

Mini Chiller

HYFRA eChilly 1

Cooling water recooling system compact, trouble-free with R134A refrigerant.

  • Power range: 1kW
  • Medium: Water
  • Flexible:  Can be adapted to the machine layout
  • Plug & play: Ready for immediate use
  • Typical applications: welding equipment, milling technology, drilling stations, tool change and laboratory technology

Minichiller

HYFRA eChilly+ 2/3/4

Compact and reliable cooling water recooling system with R134A refrigerant.

  • Power ranges 2 - 4 kW
  • Ready to plug in
  • Compact design - smaller footprint with 0.5 m2 - one housing for all sizes
  • Integrated additional options such as level indicator, easy tank draining and variable placement of connection options

Minichiller

HYFRA eChilly 5/6

Compact and reliable cooling water recooling system with R134A refrigerant.

  • Power range: 5 - 6 kW
  • Medium: Water
  • Flexible: adaptable to the machine layout
  • Ready to plug in: immediately ready for use
  • Typical applications: welding equipment, milling technology, drilling stations, tool change and laboratory technology

For high demands with limited space, the minichillers of the HYFRA eChilly series are the right solution. With their highly compressed design, the small cooling water recoolers fit into almost any machine layout. Their scratch-resistant stainless steel housing protects them even in harsh environments. The units of the HYFRA eChilly series are quickly put into operation because they are always available at short notice and are delivered ready to plug in.

Despite their small size, the chillers are convincing in terms of their equipment. The air filter installed as standard provides reliable protection against foreign bodies. The use of microchannel technology reduces the need for refrigerants by up to 70 percent. The HYFRA eChilly can be flexibly adapted using a wide range of options.


Reliable cooling in a small space

How does a mini chiller operate?

The HYFRA eChilly models are based on the principle of re-cooling water. The units cool the medium down to the temperature required in the process and provide the liquid in a tank. From there the cooled water is transported to the consumer, where it absorbs the heat from the application in a heat exchange process. The warm water then flows back to the cooler and the cycle starts again.

In which applications are mini chillers suitable?

Minichillers are used when there is little space available for the installation of the cooler and at the same time water is a suitable cooling medium. They cool machines and tools during drilling, welding, milling, and other forms of metalworking, but also during tool changes. Due to their compact size, small cooling water recirculating chillers are also frequently found in laboratories. There they are used for cooling autoclaves, reactors, measuring instruments, and other objects.


Robust basic control and optional extensions

All HYFRA eChilly models are equipped with the robust ST120 control. It has one relay each for monitoring the temperature and for controlling the compressor. On request, the chillers are also available with the FreeSmart control. This can be freely programmed, has digital and analog inputs and outputs, communicates via a TCP interface and can be connected to various applications.

The HYFRA eChilly series adapts to the exact requirements of your application with numerous options. The coolers are available in various performance levels, as water-cooled versions, and with many other features. All other HYFRA models also have numerous configuration options.

However, if required, the HYFRA experts will also plan and develop a customized refrigeration system especially for your individual process. Whether different capacities, controllers, pumps, valves, refrigerants, power supplies and much more - the scope for design is wide. Together with you, we will find the right solution even for special applications. You can count on HYFRA at every stage of the planning and construction of the plant. We take care of the design and installation of the refrigeration solution and its acceptance. We provide the material for the plant construction and take over the entire project management. This saves you the time-consuming coordination of different suppliers. Instead, you will receive a coordinated and ready-to-use cooling system from one experienced source within a short time.

With our coolers you are already prepared for the future today. Even if your cooling process changes, you do not have to purchase a new system immediately. We make sure that your existing cooling solution adapts to the changed requirements. To do this, we will put together the necessary modifications in an individual package.
